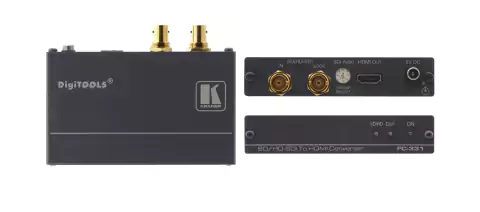

KRAMER FC-331 Convertidor de Formato 3G HD–SDI a HDMI
The FC−331 is a high−performance format converter for video signals up to 3G HD−SDI (Level A). It converts the input video format (with embedded audio) to an HDMI output signal. Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M). SDI Level A Support. Looping Input with Reclocking. HDTV Compatible. Audio Group De–embedded Selection. Active Input & Output LED Indicators.
Applications Home theater, presentation and multimedia applications. Rental and staging.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
INPUT 1 SD/HD/3G HD–SDI (Level A) with loop on BNC connectors OUTPUTS 1 HDMI connector MAX. DATA RATE Up to 3Gbps Video Latency < 10μs STANDARD COMPLIANCE HDMI INDICATOR LEDS SD/HD, OUT, ON POWER CONSUMPTION 5V DC, 400mA INCLUDED ACCESSORIES Power supply Product Dimensions 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H Product Weight 0.2kg (0.4lbs) approx. Shipping Dimensions 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H Shipping Weight 0.5kg (1.1lbs) approx.
TA RATE: Up to 3Gbps Video Latency < 10μs
OR LEDS: SD/HD, OUT,
ER CONSUMPTION: 5V DC, 400mA
ED ACCESSORIES: Power supply Product Dimensions 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H Product Weight 0.2kg (0.4lbs) approx. Shipping Dimensions 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H Shipping Weight 0.5kg (1.1lbs) approx.
