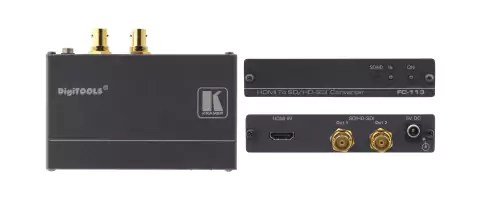

KRAMER FC-113 Conversor de Formatos HDMI a 3G HD–SDI
The FC−113 is a high−performance format converter for HDMI signals. It converts an HDMI input signal to two identical SDI video signals with embedded audio. The FC−113−MD is certified for medical applications. Max. Data Rate — 3Gbps. HDTV Compatible. Multi–Standard Operation — SDI (SMPTE 259M), HD‑SDI (SMPTE 292M), and 3G HD–SDI (SMPTE 424M). Certified for Medical Applications — According to IEC 60601–1–2 (Electromagnetic Compatibility), (FC–113–MD). No Frame Rate or Resolution Conversion. Active Input™ LED Reporting — Green indicates standard definition (SDI), blue indicates a high–definition (HD–SDI) input signal.
Applications Home theater, presentation and multimedia applications. Rental and staging.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
HDMI to 3G HD–SDI Format Converter
Supply is limited. This item will be discontinued when global inventory is depleted.
INPUT 1 HDMI connector OUTPUTS 2 SD/HD/3G HD–SDI on BNC connectors MAX. DATA RATE Up to 3Gbps Video Latency < 10μs STANDARD COMPLIANCE HDMI INPUT FORMATS 525i, 625i 1080p @23.98/24/25/29.97/30/50/59.94/60 1080i @50/59.94/60 720p @50/59.94/60 INDICATOR LEDS SD/HD, OUT, ON POWER CONSUMPTION 5V DC, 470mA INCLUDED ACCESSORIES Power supply Product Dimensions 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H Product Weight 0.2kg (0.4lbs) approx. Shipping Dimensions 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H Shipping Weight 0.5kg (1.1lbs) approx.
TA RATE: Up to 3Gbps Video Latency < 10μs
UT FORMATS: 525i, 625i 1080p @23.98/24/25/29.97/30/50/59.94/60 1080i @50/59.94/60 720p @50/59.94/60
OR LEDS: SD/HD, OUT,
ER CONSUMPTION: 5V DC, 470mA
ED ACCESSORIES: Power supply Product Dimensions 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H Product Weight 0.2kg (0.4lbs) approx. Shipping Dimensions 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H Shipping Weight 0.5kg (1.1lbs) approx.
