VM-2Hxl 1:2 HDMI Distribution Amplifier MOD: VM-2HXL
The VM−2Hxl is a distribution amplifier for HDMI signals. The unit reclocks and equalizes the signal and distributes it to two identical outputs. Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel). HDTV Compatible. HDCP Compliant. HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC. 3D Pass–Through. EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems. Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances. Active Output LED. Compact DigiTOOLS® — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.

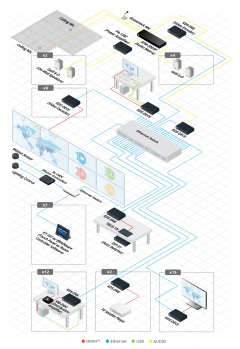

Applications Home theater, presentation and multimedia applications. Rental and staging.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
INPUT 1 HDMI connector OUTPUTS 2 HDMI connectors MAX. DATA RATE 6.75Gbps (2.25Gbps per graphic channel) COMPLIANCE WITH HDMI STANDARD Supports HDMI and HDCP CONTROLS EDID SETUP button, input select button INDICATOR LEDs IN 1, IN 2, OUT 1, OUT 2, and ON LEDs POWER CONSUMPTION 5V DC, 910mA INCLUDED ACCESSORIES Power supply, bracket installation kit Product Dimensions 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H Product Weight 0.2kg (0.4lbs) approx. Shipping Dimensions 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H Shipping Weight 0.5kg (1.1lbs) approx.
TA RATE: 6.75Gbps (2.25Gbps per graphic channel)
MI STANDARD: Supports HDMI and
ID SETUP: button, input select button INDICATOR LEDs IN 1, IN 2, OUT 1, OUT 2, and ON LEDs
ER CONSUMPTION: 5V DC, 910mA
ED ACCESSORIES: Power supply, bracket installation kit Product Dimensions 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H Product Weight 0.2kg (0.4lbs) approx. Shipping Dimensions 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H Shipping Weight 0.5kg (1.1lbs) approx.
