KRAMER KDS-DEC7 Decodificador AVoIP de alto rendimiento y alta escalabilidad 4K60 4:2:0, HDR10 sobre red 1G

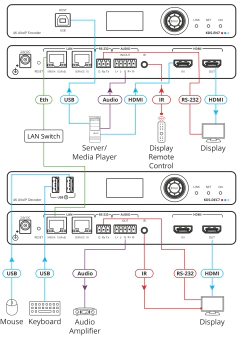

KDS−DEC7 decoder is an advanced receiver for streaming 4K video signals via Ethernet over copper cable. It decodes streams over an IP network to HDMI output, and transmit the USB, IR, RS−232, or CEC signal over IP network.
Outstanding end–user experience
Rich set of inputs and interfaces
Easy–to–use KM/KVM — Searchable OSD Menu for KM and fully configurable KVM roaming
Large scale video wall — up to 16x16
Instantaneous switching time — 1 second
Ideal for large–scale deployments
Highly scalable — 999 channels build in support
State of the art management device
Rich set of management capabilities — Standard P3K Open API , LCD screen for configuration
Enterprise IT–grade security — 802.1x and HTTPS/TLS
Security certification — OWASP Top 10 certificate
Separate ETH ports for optimal security and experience
New HW architecture that enables robust FW update
Simple planning and rollout:
Cost–effective from day one
Full product range for any site, any application
Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, etc.
Using PoE switch — up to 13W consumption
HDMI Loop–Through on Encoder and HDMI Input on Decoder
Embedding and De–embedding
Through P3K control/communicate with IR, RS232, or CEC to the connected devices
Included Products; M4250-10G2F-PoE+ M4250-26G4F-PoE+ M4250-40G8XF-PoE+
Applications For real–time essential installations such as command and control rooms For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications AV distribution systems with one or more sources and many displays in schools, universities, and public venues For AV installations where low latency KM/KVM capabilities are required
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Configurations Model Description Length Resolution Price KDS–DEC7 AVoIP Decoder for 4K over 1G network (KDS–7) KDS–DEC7–AA TAA Compliant AVoIP Decoder for 4K over 1G network (KDS–7)
Inputs 1 HDMI: On a female HDMI connector Outputs 1 HDMI: On a female HDMI connector Ports 2 Ethernets: On R–J45 connectors 1 Balanced Audio: On a 5–pin terminal block connector 1 RS-232: On a 3–pin terminal block connector 1 IR: On a 3.5mm TRS connector 2 USB: On USB–A connectors USB Features Integrated USB Hubs: 1–layer when connecting to KDS–EN7 Network Multicast: UDP, IGMP snooping non–blocking, Layer 2 Unicast: UDP Bitrate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps Video Compression: Visually Lossless, proprietary codec Max Resolution: 4K@30Hz 4:4:4 Video Streaming Compression Standard: JPEG2K based, proprietary stream Max Input Resolution: 4K@30Hz 4:4:4 Max Output Resolution: 4K@30hz (4:4:4) Max End-to-End Resolution: 4K@30hz (4:4:4) Scaler: Yes End-to-End Latency: 33msec Switching Time: 1sec Resolution 4096x2160@30Hz, 1600x1200@60Hz, 1280x960@60Hz, 848x480@60Hz, 3840x2160@60Hz, 1600x900@60Hz, 1280x800@60Hz, 800x600@60Hz, 1920x1200@50Hz, 1440x900@60Hz, 1280x768@60Hz, 720x576@60Hz, 1920x1080@60Hz, 1400x1050@60Hz, 1280x720@60Hz, 720x480@50Hz, 1856x1392@60Hz, 1366x768@60Hz, 1224x768@70Hz, 640x480@60Hz, 1792x1344@60Hz, 1360x768@60Hz, 1152x864@70Hz, 640x400@85Hz, 1680x1050@60Hz, 1024x768@60Hz, 640x350@85Hz Audio Supported Formats: LPCM, Dolby and DTS LPCM: LPCM upto 7.1/24–bit/192kHz Dolby: Dolby AtmosTM, Dolby TrueHD, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0 DTS: DTS–HD Master AudioTM, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1 Security HTTPS, 802.1x, OWASP–10, AES–128 encryption of AV streaming with changeable key User Interface Indicators: LINK, NET and ON LEDs, front panel LCD Display Controls: Restart and factory reset rear panel button, embedded web pages, P3K API commands via Ethernet, front panel navigation buttons Power PoE (Power over Ethernet): 37V to 57V Typical Power Consumption: 5.52W AV + full USB load Power Consumption: 10.29W Optional power supply: 24V DC, 5A Environmental Conditions Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing Humidity: 10% to 90%, non–condensing Product Dimensions 18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09" ) W, D, H Product Weight 0.7kg (1.5lbs) approx. Shipping Dimensions 31.20cm x 18.00cm x 7.60cm (12.28" x 7.09" x 2.99" ) W, D, H Shipping Weight 0.9kg (2.1lbs) approx.
TS LPCM: LPCM upto 7.1/24–bit/192kHz Dolby: Dolby AtmosTM, Dolby TrueHD, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0 DTS: DTS–HD Master AudioTM, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1 Security HTTPS, 802.1x, OWASP–10, AES–128 encryption of AV streaming with changeable key User Interface Indicators: LINK, NET and ON LEDs, front panel LCD Display Controls: Restart and factory reset rear panel button, embedded web pages,
P3K API: commands via Ethernet, front panel navigation buttons Power PoE (Power over Ethernet): 37V to 57V Typical Power Consumption: 5.52W AV + full USB load Power Consumption: 10.29W Optional power supply: 24V DC, 5A Environmental Conditions Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing Humidity: 10% to 90%, non–condensing Product Dimensions 18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09" ) W, D, H Product Weight 0.7kg (1.5lbs) approx. Shipping Dimensions 31.20cm x 18.00cm x 7.60cm (12.28" x 7.09" x 2.99" ) W, D, H Shipping Weight 0.9kg (2.1lbs) approx.
