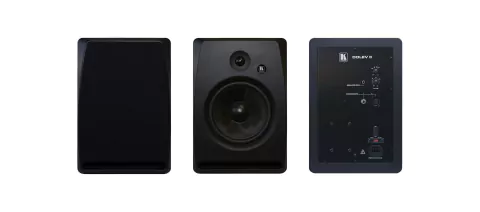

KRAMER Dolev 8 Altavoz Grado Estudio Bi-Amplificado 8 Pulgadas, Dos Vías
Kramer’s Dolev 8 is an eight−inch, two−way, bi−amplified studio−grade speaker that provides superior clarity for high−end applications or any other task that requires precise, accurate and detailed sound. Type — Two–way bi–amplified studio–grade speaker. Woofer — 8” fiberglass cone. Tweeter — 1” neodymium soft dome. Frequency Response — 43Hz—20kHz. Amplifier — Bi–amplified — 100W total. Input — XLR (3–pin), RCA & 1/4" TRS — 10kΩ balanced/unbalanced. Shielding — Magnetically shielded. Dimensions — 266mm × 305mm × 384mm (10.5" x 12.0" x 15.1") W, D, H (including grill).
Applications Home theater Sports bars Luxurious board rooms
DESCRIPTION 2–way bi–amplified powered speaker BUILT IN POWER AMPLIFIER 100W RMS tweeter: 70W woofer: 70W AMPLIFIER CLASS A/B FREQUENCY RESPONSE 43Hz to 20kHz @±3dB WOOFER 8” fiberglass cone, rubber surround TWEETER 1” soft silk dome, neodymium SENSITIVITY 90dB SPL, 1W @1m MAX SPL 119dB POWER SOURCE 110V AC 60Hz, 220V AC 50Hz CROSSOVER FREQUENCY 3.7kHz CONTROLS Volume and high–frequency gain INPUT CONNECTORS 1 balanced XLR connector, 1 balanced 1/4” TRS connector, 1 unbalanced RCA connector MATERIALS Wooden cabinet, magnet–held fabric grill WEIGHT OF SPEAKER 11.46kg (25.3lbs) approx INCLUDED ACCESSORIES Power cord COLORS Available in black OPTIONS XLR quad cable (C–XLQM/XLQF) 3.5mm to 2 RCA breakout cable (C–A35M/2RAM)
ER AMPLIFIER: 100W RMS tweeter: 70W woofer: 70W
CY RESPONSE: 43Hz to 20kHz @±3dB WOOFER 8” fiberglass cone, rubber surround TWEETER 1” soft silk dome, neodymium SENSITIVITY 90dB SPL, 1W @1m
AX SPL: 119dB
ER SOURCE: 110V AC 60Hz, 220V AC 50Hz
ER FREQUENCY: 3.7kHz CONTROLS Volume and high–frequency gain
UT CONNECTORS: 1 balanced XLR connector, 1 balanced 1/4” TRS connector, 1 unbalanced RCA connector MATERIALS Wooden cabinet, magnet–held fabric grill
OF SPEAKER: 11.46kg (25.3lbs) approx
ED ACCESSORIES: Power cord COLORS Available in black
NS XLR: quad cable (C–XLQM/XLQF) 3.5mm to 2 RCA breakout cable (C–A35M/2RAM)
- Dolev Mounting Device
- DOCUMENTATION Dolev 8.pdf Dolev Mounting Device
