KRAMER EXT3-TR 4K60 4:4:4 HDMI Extender with USB, RS–232 & IR over Long–Reach HDBaseT 3.0

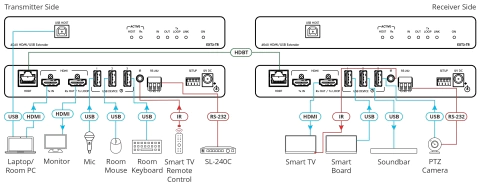

EXT3−TR is a high−performance, long−reach HDBaseT 3.0 extender for 4K60Hz (4:4:4) HDMI, USB, RS−232, and IR signals over twisted pair, flexibly set as transmitter−side or receiver−side device. EXT3−TR transmitter−side converts all input signals into the transmitted HDBaseT 3.0 signal. EXT3−TR receiver−side receives the HDBaseT 3.0 signal and converts it back into the original input signals. It extends video signals up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution. High Performance Standard Extender — Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. EXT3–TR is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables. HDMI Signal Extension — HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports HDR10, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. HDMI Mirroring — Transmitter–side extender mirrors input HDMI signal to loop output port for connecting a local monitor or an additional unit in a daisy chain. Flexible USB 2.0 Extension — An active USB host is connected to the extender at either the transmitter or receiver sides. USB 2.0 signals are extended between the extender transmitter and receiver sides, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices. Multi–channel Audio Transmission — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound. Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control. Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line. Cost–effective Maintenance — Status LED indicators for HDMI, Loop, HDBT, and USB active host ports, facilitate easy local maintenance and troubleshooting. Easy and Elegant Installation — MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
Applications Corporate — Hybrid and online meetings Education — Hybrid and online learning and training Any AV, Ethernet and USB room extension applications such as conference rooms, boardrooms, and training facilities
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Inputs TRANSMITTER–SIDE INPUTS 1 HDMI: On a HDMI female connector RECEIVER–SIDE INPUTS 1 HDBT: On an RJ–45 female connector Outputs TRANSMITTER–SIDE OUTPUTS 1 HDBT: On an RJ–45 female connector 1 LOOP: On a HDMI female connector RECEIVER–SIDE OUTPUTS 1 HDMI: On a HDMI female connector Ports 1 USB 2.0 Host: On a USB–B female connector 3 USB 2.0 Device: On USB type–A female connectors 1 IR: On a 3.5mm mini jack for IR link extension 1 RS–232: On a 3–pin terminal block for serial link extension USB Features Integrated USB Hubs: 1 Extension Line Up to 40m (130ft): At 4K@60Hz (4:4:4) Up to 70m (230ft): At up to 4K@30Hz (4:4:4) Up to 70m (230ft): At 1080p@60hz Note: When using Kramer HDBaseT cables Standards Compliance: HDBaseT 3.0 Video Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel) Max Resolution: 4K@60Hz (4:4:4) 24bpp resolution Content Protection: HDCP 2.3 HDMI Support: 4K as specified in HDMI 2.0b Extended USB Data Rate: Up to 480Mbps Transmitted Data Bandwidth: Up to 300Mbps Standards Compliance: 1.1 and 2.0 USB Extended RS-232 Baud Rate: 300 to 115200 Power Source: 12V DC, 2A Consumption: 600mA USB Device Charging Max Total Current: 2A Enclosure Size: Mega Tools Material: Aluminum Cooling: Convection ventilation Environmental Conditions Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: –40° to +70°C (–40° to 158°F) Humidity: 10% to 90%, RHL non–condensing Vibration: ISTA 1A in carton (International Safe Transit Association) Regulatory Compliance (Standards Compliance) Safety: CE Environmental: RoHs and WEEE Accessories Included: Power adapter, bracket, rubber feet Product Dimensions 19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H Product Weight 0.6kg (1.2lbs) approx. Shipping Dimensions 34.50cm x 16.20cm x 5.20cm (13.58" x 6.38" x 2.05" ) W, D, H Shipping Weight 1.1kg (2.5lbs) approx.
DE INPUTS 1 HDMI: On a HDMI female connector RECEIVER–
DE INPUTS 1 HDBT: On an RJ–45 female connector Outputs TRANSMITTER–
DE OUTPUTS 1 HDBT: On an RJ–45 female connector 1 LOOP: On a HDMI female connector RECEIVER–
DE OUTPUTS 1 HDMI: On a HDMI female connector Ports 1 USB 2.0 Host: On a USB–B female connector 3 USB 2.0 Device: On USB type–A female connectors 1 IR: On a 3.5mm mini jack for IR link extension 1 RS–232: On a 3–pin terminal block for serial link extension USB Features Integrated USB Hubs: 1 Extension Line Up to 40m (130ft): At 4K@60Hz (4:4:4) Up to 70m (230ft): At up to 4K@30Hz (4:4:4) Up to 70m (230ft): At 1080p@60hz Note: When using Kramer HDBaseT cables Standards Compliance: HDBaseT 3.0 Video Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel) Max Resolution: 4K@60Hz (4:4:4) 24bpp resolution Content Protection: HDCP 2.3 HDMI Support: 4K as specified in HDMI 2.0b Extended USB Data Rate: Up to 480Mbps Transmitted Data Bandwidth: Up to 300Mbps Standards Compliance: 1.1 and 2.0 USB Extended RS-232 Baud Rate: 300 to 115200 Power Source: 12V DC, 2A Consumption: 600mA USB Device Charging Max Total Current: 2A Enclosure Size: Mega Tools Material: Aluminum Cooling: Convection ventilation Environmental Conditions Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: –40° to +70°C (–40° to 158°F) Humidity: 10% to 90%, RHL non–condensing Vibration: ISTA 1A in carton (International Safe Transit Association) Regulatory Compliance (Standards Compliance) Safety: CE Environmental: RoHs and WEEE Accessories Included: Power adapter, bracket, rubber feet Product Dimensions 19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H Product Weight 0.6kg (1.2lbs) approx. Shipping Dimensions 34.50cm x 16.20cm x 5.20cm (13.58" x 6.38" x 2.05" ) W, D, H Shipping Weight 1.1kg (2.5lbs) approx.
