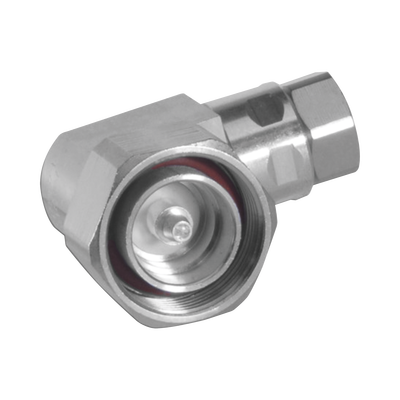

ANDREW / COMMSCOPE Conector DIN 7-16 Macho De Angulo Recto Para Cable FSJ450B MOD: F4DR-C
$1,175.56
$1,635.92
24 meses de $68.98
2% de descuento pagando con Transferencia o depósito bancario
Ver métodos de pago
Electrical Specifications
Connector Impedance
50 ohm
Operating Frequency Band
0 – 7500 MHz
Cable Impedance
50 ohm
3rd Order IMD, typical
-120 dBm @ 910 MHz
3rd Order IMD Test Method
Two +43 dBm carriers
RF Operating Voltage, maximum (vrms)
884.00 V
dc Test Voltage
2500 V
Outer Contact Resistance, maximum
1.50 mOhm
Inner Contact Resistance, maximum
0.80 mOhm
Insulation Resistance, minimum
5000 MOhm
Average Power
1.0 kW @ 900 MHz
Peak Power, maximum
15.60 kW
Insertion Loss, typical
0.05 dB
Shielding Effectiveness
-110 dB
