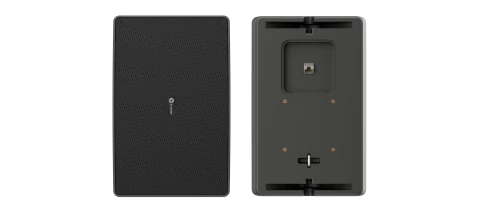

KRAMER WM-8D 8” two–way wall mounted PoE powered Dante speaker
Download the Kramer Speaker Manager (.exe) and installation instructions from the Resources tab.
Kramer’s WM−8D is a high−performance 8” wall−mounted PoE−powered Dante speaker designed to deliver rich, full−bodied sound for premium indoor environments such as boardrooms, auditoriums, restaurants, and premium meeting spaces. Featuring a built−in amplifier, DSP, and mixer, the WM−8D supports two−channel mixing and advanced sound shaping with parametric EQ, high−pass/low−pass filters, input compression, output limiting, power management, and a “find me” tone − applicable via Kramer’s intuitive Speaker Utility software.
Designed with the system integrator in mind, the WM−8D comes with Kramer’s EasyMount bracket for flexible vertical, horizontal, or corner installation, and includes standard 75mm VESA mount threads for additional mounting options. Available in black or white, the WM−8D combines exceptional audio performance with a clean, professional design and integrates smoothly with Kramer Control or third−party control systems via its robust API.
Exceptional sound performance
Complies with UL1480A for indoor installations (made from V–0 flame retardant materials)
Supports PoE++/PoE+/PoE (auto–negotiate)
Built–in mixer, DSP, and amplifier for two–channel mixing, parametric EQ, High pass and low pass filters, input compressor, output limiter and advanced power settings
Features a built–in “Find Me” tone, making it easy to identify and locate individual speakers during installation or maintenance.
Power handling: 10W continuous / 30W peak
Sound Pressure Level (SPL): — Sensitivity (1W@1m, free field): 90dB SPL
Maximum SPL: Continuous: 100dB SPL / Peak: 105dB SPL
Regulatory compliance: — IEC62368(CB) / CE LVD, UL62368–1
FCC/IC, BIS, RCM
RoHS, REACH, WEEE
Industrial design: — EasyMount bracket for flexible wall installation in vertical, horizontal, or corner orientations, and features standard 75mm VESA mount threads for expanded mounting options, available in black & white colors, removable logo
Eco–friendly mono–material packaging
The WM–8D wall–mounted Speaker is a high–end solution for indoor applications delivering high–performance high–quality sound in professional Dante networked audio installations.
Included in the box: — 1 speaker (single unit), 2 speakers are packed in a single master box
1 EasyMount mounting brackets (1 per speaker) + 2 bracket screws
L–shaped Allen key (M6)
Quick Start Guide
Applications Conferencing meeting rooms Mixed Background music and paging applications (malls, train stations, airports) Retail, restaurants, sports bar Command and control centers Large scale networked Dante installations
Premium 8” two–way wall mounted PoE powered Dante speaker. Available in black & white colors
200 mm (8 in) with polypropylene cone and rubber surround
25 mm (1 in) liquid cooled soft–dome tweeter
Frequency Range (-10dB):
Frequency Response (±3dB):
124deg. (1 kHz to 4 kHz)
10W continuous / 30W peak
10W continuous / 20W peak
10W continuous / 10W peak
Sound Pressure Level (SPL):
Sensitivity (1W@1m, free field):
Continuous: 100dB / Peak: 105dB
Continuous: 100dB / Peak: 103dB
Continuous: 100dB / Peak: 100dB
Surface mounted vertical, horizontal or in corners
EasyMount bracket included, standard 75mm VESA mount threads
RJ–45, factory reset button
Dimensions without Bracket:
250mm x 222mm x 390mm / 98.5" x 87.4" x 153.6"
Dimensions with Bracket:
250mm x 306mm x 390mm / 98.5" x 120.5" x 153.6"
Shipping dimensions (single unit):
422mm x 332mm x 480mm / 16.6" x 13.1" x 18.9"
Shipping dimensions (2 units in a Master box):
670mm x 430mm x 498mm / 26.4" x 17.0" x 19.6"
Shipping weight (single unit):
6.3Kg / 13.9lbs
Shipping weight (Master box):
15Kg / 33lbs
Powder Coated Steel, removable logo
Baffle & back enclosure:
V–0 Flame Retardant
–5° to +50°C (23°F to 122°F.)
–10° to +55°C (14°F to 131°F.)
30% to 85%, RHL non–condensing
Weight per single speaker (including mounting bracket)
o U1480A Compliant:
Safety standards for fire–protective signaling in commercial spaces
IEC 62368 (CB) / CE LVD:
Safety standard for audio equipment addressing risks related to electrical, mechanical, and environmental factors in low–voltage devices
Safety of audio, equipment by addressing potential hazards through risk–based performance criteria for electrical and mechanical systems
Safety, quality, and performance requirements specific to the Indian market
(Regulatory Compliance Mark) electrical safety, electromagnetic compatibility (EMC), and radiofrequency (RF) standards for products in Australia and New Zealand
FCC / IC:
Compliance with regulations for electromagnetic interference (EMI) and radio frequency (RF) emissions, ensuring that devices operate safely and do not cause harmful interference
RoHS, REACH, WEEE
In the Box:
1 speaker (single unit), 2 speakers are packed in a single master box
1 EasyMount mounting brackets (1 per speaker) + 2 bracket screws
L–shaped Allen key (M6)
Quick Start Guide
Premium 8” two–way wall mounted PoE powered Dante speaker. Available in black & white colors
200 mm (8 in) with polypropylene cone and rubber surround
25 mm (1 in) liquid cooled soft–dome tweeter
Frequency Range (-10dB):
Frequency Response (±3dB):
124deg. (1 kHz to 4 kHz)
10W continuous / 30W peak
10W continuous / 20W peak
10W continuous / 10W peak
Sound Pressure Level (SPL):
Sensitivity (1W@1m, free field):
Continuous: 100dB / Peak: 105dB
Continuous: 100dB / Peak: 103dB
Continuous: 100dB / Peak: 100dB
Surface mounted vertical, horizontal or in corners
EasyMount bracket included, standard 75mm VESA mount threads
RJ–45, factory reset button
Dimensions without Bracket:
250mm x 222mm x 390mm / 98.5" x 87.4" x 153.6"
Dimensions with Bracket:
250mm x 306mm x 390mm / 98.5" x 120.5" x 153.6"
Shipping dimensions (single unit):
422mm x 332mm x 480mm / 16.6" x 13.1" x 18.9"
Shipping dimensions (2 units in a Master box):
670mm x 430mm x 498mm / 26.4" x 17.0" x 19.6"
Shipping weight (single unit):
6.3Kg / 13.9lbs
Shipping weight (Master box):
15Kg / 33lbs
Powder Coated Steel, removable logo
Baffle & back enclosure:
V–0 Flame Retardant
–5° to +50°C (23°F to 122°F.)
–10° to +55°C (14°F to 131°F.)
30% to 85%, RHL non–condensing
Weight per single speaker (including mounting bracket)
o U1480A Compliant:
Safety standards for fire–protective signaling in commercial spaces
IEC 62368 (CB) / CE LVD:
Safety standard for audio equipment addressing risks related to electrical, mechanical, and environmental factors in low–voltage devices
Safety of audio, equipment by addressing potential hazards through risk–based performance criteria for electrical and mechanical systems
Safety, quality, and performance requirements specific to the Indian market
(Regulatory Compliance Mark) electrical safety, electromagnetic compatibility (EMC), and radiofrequency (RF) standards for products in Australia and New Zealand
FCC / IC:
Compliance with regulations for electromagnetic interference (EMI) and radio frequency (RF) emissions, ensuring that devices operate safely and do not cause harmful interference
RoHS, REACH, WEEE
In the Box:
1 speaker (single unit), 2 speakers are packed in a single master box
1 EasyMount mounting brackets (1 per speaker) + 2 bracket screws
L–shaped Allen key (M6)
Quick Start Guide
- WM–8D Speaker Quick Start
- Dante Speaker App Installation Instructions
- DOCUMENTATION WM–8D Speaker Quick Start Dante Speaker App Installation Instructions - Download Speaker Utility Software (link inside) for Windows and review the Installation instructions
