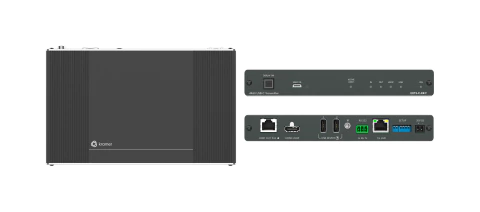

KRAMER EXT3-C-XR-T 4K60 4:4:4 USB–C Transmitter with USB, Ethernet, RS–232, & IR over Extended–Reach HDBaseT 3.0
EXT3−C−XR−T is a high−performance, extended−reach HDBaseT 3.0 transmitter, with a USB−C input, for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS−232, and IR signals over twisted pair. EXT3−C−XR−T transmitter converts all input signals into the transmitted HDBaseT 3.0 signal. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution. High Performance Standard Extender — Professional HDBaseT extender for providing extended–reach signals over twisted–pair copper infrastructures. EXT3–C–XR–T is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables. BYOD Ease and Convenience — Connect any DP–Alt–Mode–capable USB–C device as an AV presentation source, while providing the connected device with USB 2.0 and Ethernet connection, and (if PD–2.0–capable) up to 60 watts of power, via a single USB–C cable connection only. Convenient Display Power On/Off Control — Simply press the DISPLAY ON button to toggle on and off the power of the remote CEC–enabled display; button LED indicates the power on/off status of the remote display. HDMI Signal Extension — Uncompressed 4K@60Hz (4:4:4) HDMI, HDCP 2.3, EDID and CEC signals are passed through from the source to the display. HDMI Support — Supports HDR10, deep color, x.v.Color™, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. HDMI Mirroring — Transmitter mirrors input HDMI signal to loop output port for connecting a local monitor or adding an additional unit in a daisy chain. Flexible USB 2.0 Extension — An active USB host is connected to the extender at either the transmitter or receiver sides. USB 2.0 signals are extended between the extender transmitter and receiver sides, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices. I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems. Multi–channel Audio Transmission — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound. Ethernet Extension — Ethernet interface data flows in both directions allowing extension of up to 1 Gbps Ethernet connectivity for LAN communication and device control. Bidirectional RS–232 Extension — Serial interface data flows in both directions allowing data transmission and device control. Bidirectional Infrared Extension — IR interface data flows in both directions allowing remote control of peripheral devices located at either end of the extended line. Cost–effective Maintenance — Status LED indicators for HDMI, Loop, HDBT, and USB active host ports, facilitate easy local maintenance and troubleshooting. Easy and Elegant Installation — MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
Applications Corporate — Hybrid and online meetings Education — Hybrid and online learning and training Any AV, Ethernet and USB room extension applications such as conference rooms, boardrooms, and training facilities
1 DP Alt Mode & PD 3.0 USB-C:
On a USB type–C female connector
1 HDBT: On an RJ–45 female connector
1 LOOP: On an HDMI female connector
2 USB 2.0 Device:
On USB type–A female connectors
1 1000BaseT Ethernet:
On an RJ–45 female connector for LAN extension
On a 3.5mm mini jack for IR extension
On a 3–pin terminal block for serial extension
Integrated USB Hubs:
Up to 100m (330ft)
Note: When using Kramer HDBaseT cables
Max Data Rate:
18Gbps bandwidth (6Gbps per graphic channel)
4K@60Hz (4:4:4) 24bpp resolution
4K as specified in HDMI 2.0b
Up to 480Mbps
Transmitted Data Bandwidth:
Up to 300Mbps
1.1 and 2.0 USB
300 to 115200
20V DC, 6A
20V DC, 4.35A
USB Device Charging
Max. Total Current:
0° to +40°C (32° to 104°F)
–40° to +70°C (–40° to 158°F)
10% to 90%, RHL non–condensing
Regulatory Compliance (Standards Compliance)
RoHs and WEEE
USB–C 1m cable, power adapter, bracket, rubber feet
19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H
0.6kg (1.2lbs) approx.
34.50cm x 21.00cm x 6.70cm (13.58" x 8.27" x 2.64" ) W, D, H
1.2kg (2.5lbs) approx.
Enclosure Size: Mega Tools Material: Aluminum Cooling: Convection ventilation
Extended IR Safety: CE
Product Dimensions 19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H
Shipping Dimensions 34.50cm x 21.00cm x 6.70cm (13.58" x 8.27" x 2.64" ) W, D, H
1 DP Alt Mode & PD 3.0 USB-C:
On a USB type–C female connector
1 HDBT: On an RJ–45 female connector
1 LOOP: On an HDMI female connector
2 USB 2.0 Device:
On USB type–A female connectors
1 1000BaseT Ethernet:
On an RJ–45 female connector for LAN extension
On a 3.5mm mini jack for IR extension
On a 3–pin terminal block for serial extension
Integrated USB Hubs:
Up to 100m (330ft)
Note: When using Kramer HDBaseT cables
Max Data Rate:
18Gbps bandwidth (6Gbps per graphic channel)
4K@60Hz (4:4:4) 24bpp resolution
4K as specified in HDMI 2.0b
Up to 480Mbps
Transmitted Data Bandwidth:
Up to 300Mbps
1.1 and 2.0 USB
300 to 115200
20V DC, 6A
20V DC, 4.35A
USB Device Charging
Max. Total Current:
0° to +40°C (32° to 104°F)
–40° to +70°C (–40° to 158°F)
10% to 90%, RHL non–condensing
Regulatory Compliance (Standards Compliance)
RoHs and WEEE
USB–C 1m cable, power adapter, bracket, rubber feet
19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H
0.6kg (1.2lbs) approx.
34.50cm x 21.00cm x 6.70cm (13.58" x 8.27" x 2.64" ) W, D, H
1.2kg (2.5lbs) approx.
- Standards Compliance: HDBaseT 3.0
- Content Protection: HDCP 2.3
- USB-C Charging Max. Power: 60W
Enclosure Size: Mega Tools Material: Aluminum Cooling: Convection ventilation
Extended IR Safety: CE
Product Dimensions 19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H
Shipping Dimensions 34.50cm x 21.00cm x 6.70cm (13.58" x 8.27" x 2.64" ) W, D, H
