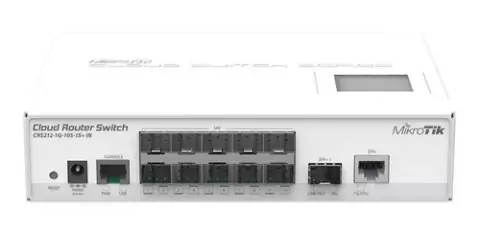

Cloud Router Switch Capa 3, 10 Puertos SFP, 1 SFP (Escritorio)
(CRS212-1G-10S-1S+IN) Cloud Router Switch Capa 3, 10 Puertos SFP, 1 SFP+ (Escritorio)
Modelo: CRS212-1G-10S-1SPLUSIN
Cloud Router Switch 212-1G-10S-1S+IN es un nuevo miembro de "pequeño tamaño y bajo costo" de nuestra serie CRS. Viene con un puerto Gigabit Ethernet RJ45, diez puertos SFP y un puerto 10G SFP+, además de panel LCD y puerto serie (RJ45). El producto incluye caja de escritorio interior y fuente de alimentación. Se proporcionan orejas especiales para montar la unidad en un bastidor (Rack).
Nuestra serie CRS combina las mejores características de un enrutador completamente funcional y un switch de Capa 3, alimentado por el conocido RouterOS. Todas las opciones específicas de configuración del conmutador están disponibles en un menú especial del switch, pero si lo desea, los puertos pueden eliminarse de la configuración del switch y utilizarse para fines de enrutamiento.
Specifications
Details
Product code CRS212-1G-10S-1S+IN
Architecture MIPSBE
CPU QCA8519
CPU core count 1
CPU nominal frequency 400 MHz
Dimensions 200x144x47mm
License level 5
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -20C to +55C tested
Suggested price $219.00
Powering
Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 8-30 V
Max power consumption 20 W
Max power consumption without attachments 20W
Ethernet
Details
10/100/1000 Ethernet ports 1
Fiber
Details
SFP ports 10
SFP+ ports 1
Peripherals
Details
Serial port RJ45
Other
Details
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Switching results
CRS212-1G-10S-1S+IN
Mode Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Switching Non blocking Layer 2 throughput 31,250.0 16,000.0 4,934.2 20,210.5 1,706.8 20,726.9
Switching Non blocking Layer 2 capacity 31,250.0 32,000.0 4,934.2 40,421.1 1,706.8 41,453.8
Switching Non blocking Layer 1 throughput 31,250.0 21,000.0 4,934.2 21,000.0 1,706.8 21,000.0
Switching Non blocking Layer 1 capacity 31,250.0 42,000.0 4,934.2 42,000.0 1,706.8 42,000.0
Ethernet test results
CRS212-1G-10S-1S+IN QCA8519 Max possible throughput test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 26.7 324.2 28.6 117.1 24.5 12.5
Bridging 25 bridge filter rules 21.4 259.9 22.4 91.8 22.2 11.4
Routing none (fast path) 23.0 279.3 23.5 96.3 24.5 12.5
Routing 25 simple queues 19.6 238.0 22.4 91.8 21.0 10.8
Routing 25 ip filter rules 7.9 95.9 10.4 42.6 10.8 5.5
All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
